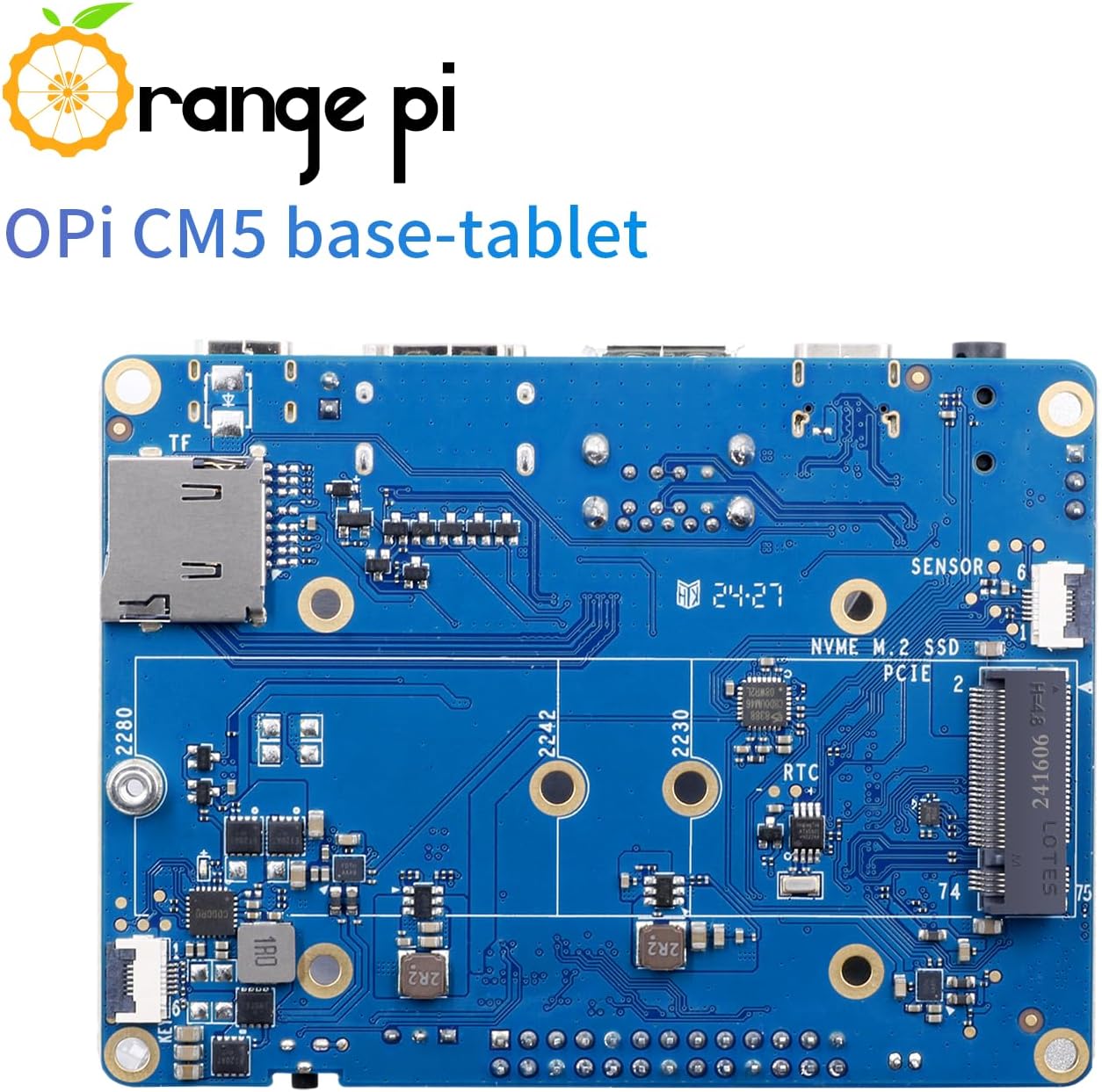

Orange Pi CM5 Tablet Base Board Rich Interface, Up to 8K @60Hz, with Wi-Fi5+BT 5.0, BLE Support for Orange Pi CM5
Product details
| Management number | 231805376 | Release Date | 2026/06/18 | List Price | US$12.40 | Model Number | 231805376 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

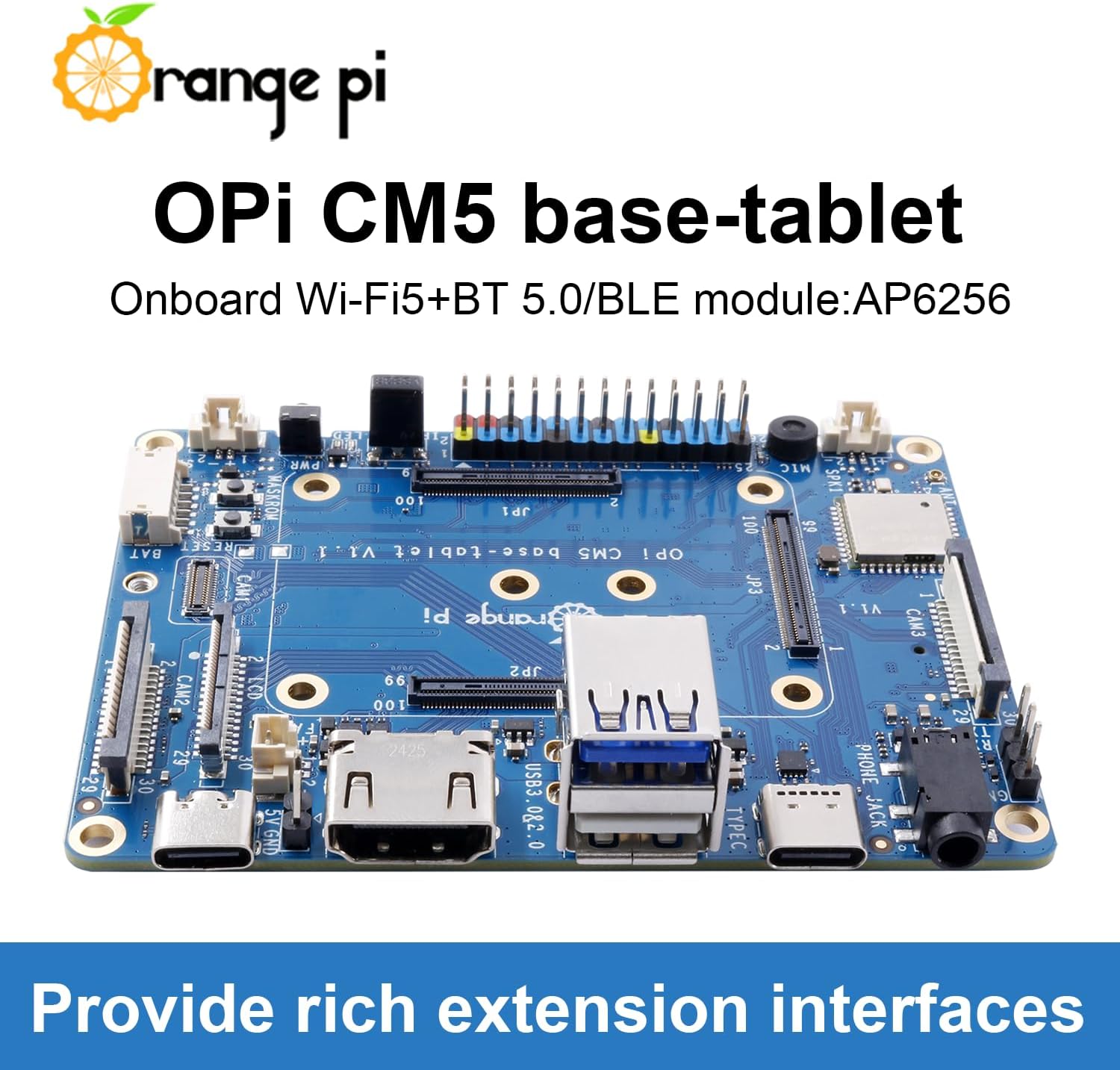

Hardware ParametersBoard-to-board connector: 3*100pin, 0.4mm pin pitch, connector model: df40c-100ds-0.4vMemory: MicroSD (TF) slot M.2 MKEY slot: NVMe SSD (PCIe 2.0 1 Lane) or SATA3.0 SSDUSB: Type-C USB3.0USB3.0 + USB2.0Video output: HDMI2.1, supports up to 8K @60Hz DP1.4 ALT 4Lane (shared TYPE C connector) MIPI DPHY TX 4 Lane Camera: MIPI CSI 4 Lane 2*MIPI DPHY RX 2Lane Audio: 3.5mm headphone jack audio in/out HDMI 2.1 eARC Input: onboard MIC Output: 2*SPK sockets, 2pin 1.25mmWi-Fi, BT module: Onboard Wi-Fi5+BT 5.0/BLE module:AP6256 Wi-Fi interface: SDIO3.0 BT interface: UART/PCMExpansion port - 26pin double-row pins: Dual row pin: 2.54mm 26Pin Support DC 5V and 3.3V power output. Configurable UART, PWM, I2C, SPI, CAN, GPIO and other functional interfaces.Button: 1* MaskROM，1*RESET，1 * PWR INPower supply: Support Type-C power supply, 5V @ 5ABattery Holder: Battery holder: board-to-wire connection, 6pin, 1.5mm pitch, supports single Li-ion battery charging function, charging current up to 3.78AButton interface: 6pin FPC socket, pin distance 0.5mmSensor interface: 6pin FPC socket, pin distance 0.5mmLED: Power indicator: red; status indicator: greenFan: 5V 2pin 1.25mm socketSPK: 2PIN 1.25mm socketRTC: Test pad spare, can be connected to 3V spare RTC batteryDebugging: Debugging serial port UARTPCB: Length: 90mm, width: 66mm, thickness: 1.6mmWeight: 43g
- Orange Pi CM5 tablet base board is an official Orange Pi base board that can be used with Orange Pi CM5 core board.
- Orange Pi CM5 tablet base board has Wi-Fi5+BT 5.0, BLE support, and standard CM5 connectors
- Orange Pi CM5 tablet base board can be used as a CM5 development system or as an embedded board integrated into end products.
- Makeing Orange Pi Compute Module 5 Rich interface and making it easy to use.
- USB: Type-C USB3.0, USB3.0 + USB2.0
| ASIN | B0DPHWWF7W |
|---|---|
| Brand | Orange Pi |
| USB 20 | 1 |
| CPU Model | Cortex |
| Model Name | Orange Pi CM5 |
| Chipset Type | Amlogic S922XJ |
| Manufacturer | Shenzhen Xunlong Software CO.,Limited |
| Model Number | Orange Pi CM5 |
| BuiltIn Media | Orange Pi CM5 Tablet Base Board |
| Number of Ports | 26 |
| Total Usb Ports | 2 |
| Processor Socket | BGA 1023 |
| Total PCIe Ports | 1 |
| Total SATA Ports | 1 |
| Compatible Devices | Orange Pi CM5 |
| SPDIF Connector Type | Type-C (DisplayPort Alt Mode) |
| Warranty Description | No |
| Compatible Processors | Orange Pi CM5 |
| Graphics Card Interface | Integrated |
| Main Power Connector Type | Type-C |
| Total Number of HDMI Ports | 1 |
